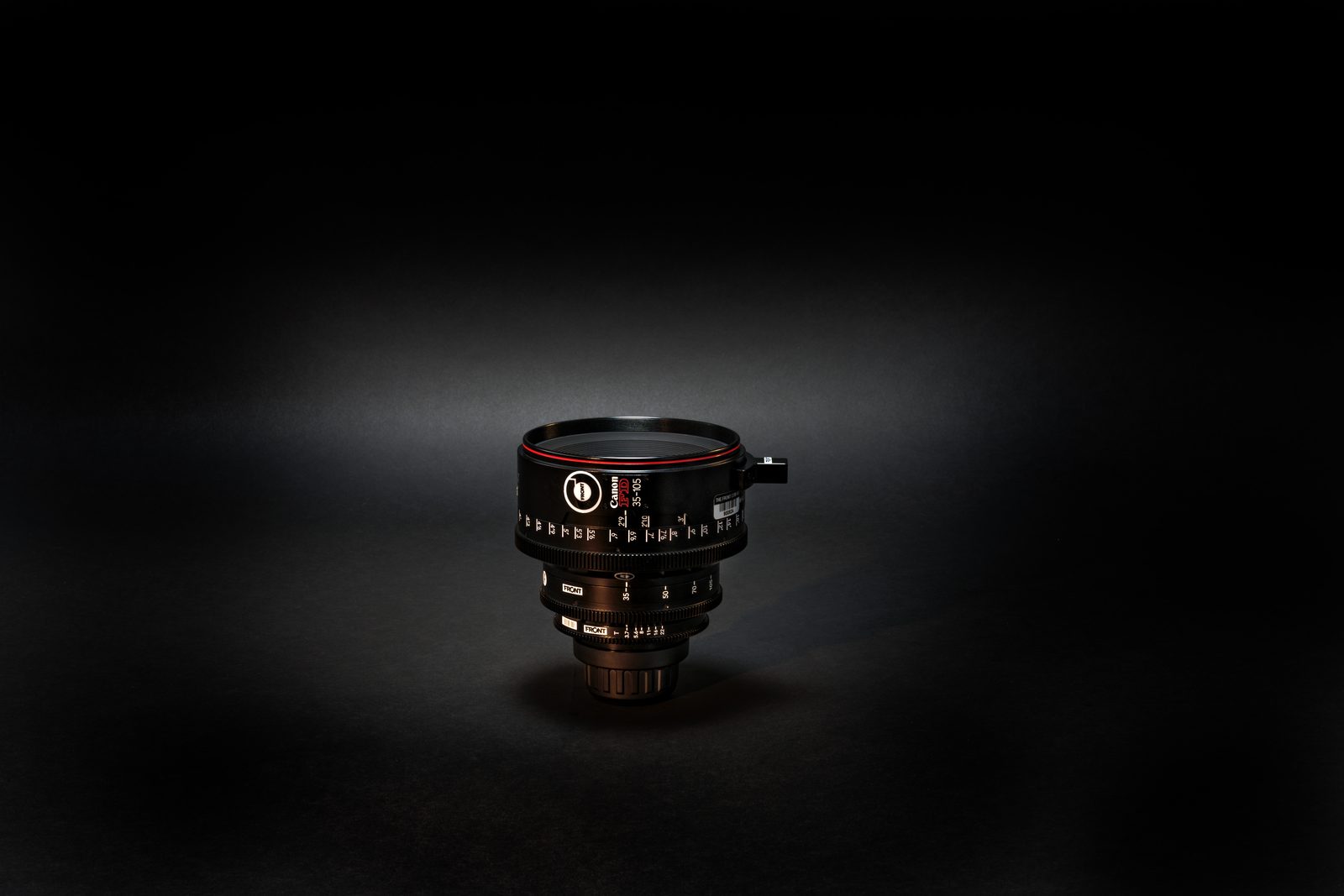

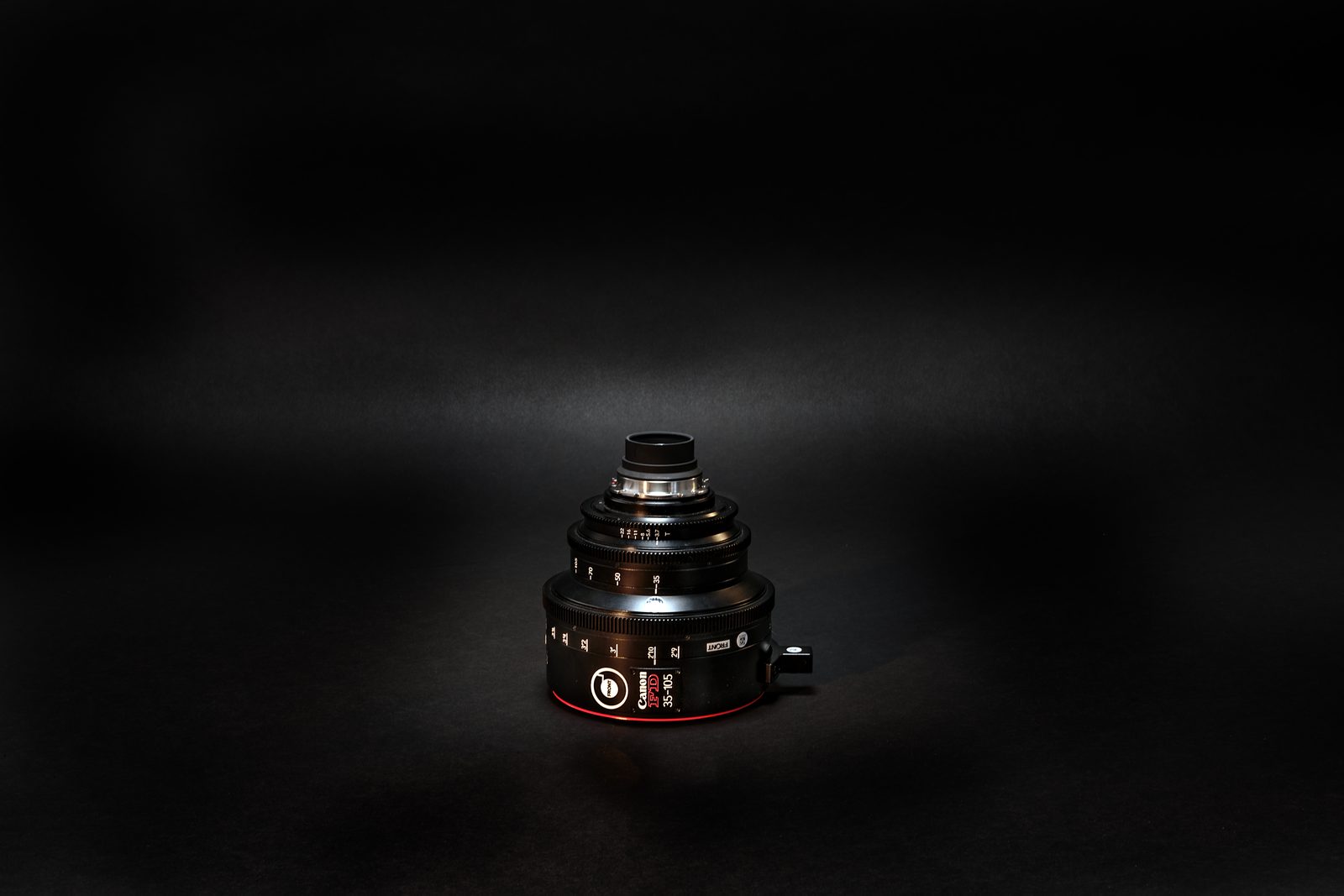

Canon FD 3X Zoom by Ancient Optics Rehoused, Zoom (vintage), available for cinema lens hire at The Front in Sydney Canon FD 3X Zoom, view 2Canon FD 3X Zoom, view 3
Vintage Zoom

Ancient Optics Rehoused

Canon FD 3X Zoom

Full Frame · PL Mount

35 – 105mm T3.7 PL

The definitive mid-range vintage zoom companion for Canon K35/FD primes.

Features matching Canon S.S.C. coatings for identical gold and purple flares. The multi-format conversion, from FF 35-105mm to S35 24-75mm with a built-in speed booster, takes 10 minutes and a screwdriver. Close focus improved by nearly two feet from the original.

Character profile

How this lens renders.

Pentagonal bokeh. K35-matched. Dual-format.

Five axes plotting how this set behaves wide-open vs a neutral modern reference. Larger area = more pronounced trait.

Talking points

Why DPs pick this set

  1. Seamless match for Canon K35 or FD primes.

    Same coatings, identical flare character

  2. Unique pentagonal bokeh from original 5-blade iris (intentionally preserved)

  3. Multi-format: 35-105mm T3.7 FF or 24-75mm T2.9 S35 via quick swap

  4. Close focus improved from 4'6" to 2'9".

    A major practical upgrade

Technical

Full specifications

Focal Range
35–105mm T3.7 (Full Frame) · 24–75mm T2.9 (Super 35)
Mount
PL (FF mode) · LPL with built-in focal reducer (S35 mode)*
Coverage
Full Frame or Super 35: 10-minute swap with screwdriver
Close Focus
2'9" (improved from original 4'6")*
Weight
2.75 kg (FF) · 3.0 kg (S35 with focal reducer)*

Some figures here are marked *. Our sources disagree on those, so we're checking them against the lenses themselves. Ask us and we'll measure it for you.

Heritage

  1. Origin

    The Canon FD 3X zoom was a workhorse of Canon’s FD-mount era (1971–1992), originally covering 35–105mm at T3.7, a popular mid-range for documentary and TV. Same SSC (Super Spectra Coating) chemistry as Canon’s celebrated K35 cinema primes from the same period.

  2. Filmography

    Widely used across 1970s–80s documentary and news production in its original FD-mount form. In rehoused cinema form it’s the natural mid-range companion to the Canon K35 prime set.

  3. Build

    Ancient Optics’ rehousing preserves the original SSC coatings for matched flare and colour against K35 primes. The original 5-blade iris is kept intentionally for the signature pentagonal bokeh. Multi-format conversion via a swappable built-in speed booster: 35–105mm T3.7 Full Frame or 24–75mm T2.9 Super 35, 10 minutes and a screwdriver. Close focus improved from 4'6" to 2'9".
