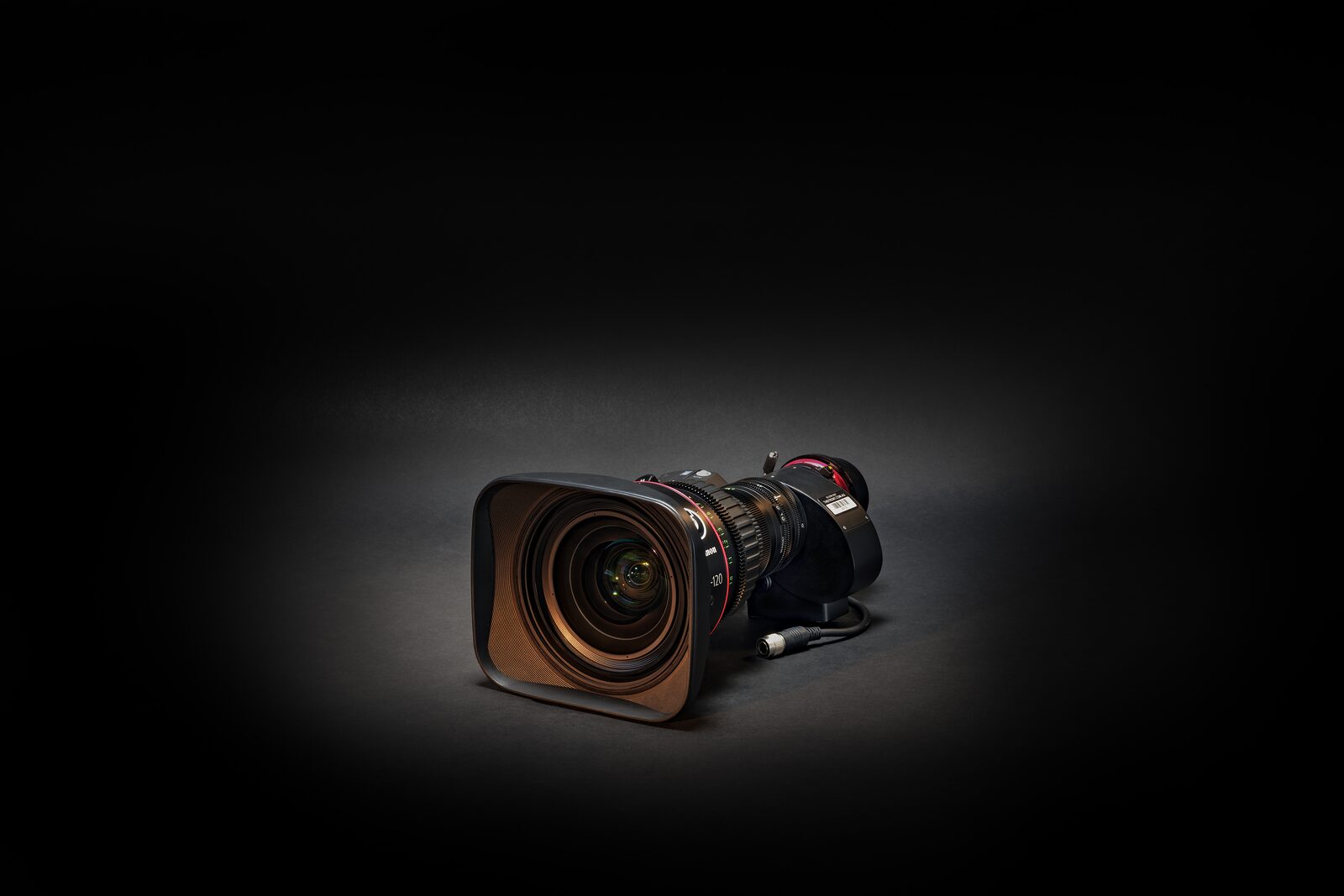

Canon Cine-Servo 15-120mm by Canon, Zoom, available for cinema lens hire at The Front in Sydney Canon Cine-Servo 15-120mm, view 2Canon Cine-Servo 15-120mm, view 3
Modern Zoom

Canon

Canon Cine-Servo 15-120mm

15 – 120mm zoom T2.95 – T3.95 PL

Canon’s 8× Cine-Servo covers 15 to 120mm on Super 35, at T2.95 through 90mm and T3.95 at 120mm.

Engage the built-in 1.5× extender and it becomes a 22.5 to 180mm zoom that covers full frame, at T4.4 to 135mm and T5.9 at 180mm. The servo drive takes zoom and focus controllers, and it comes off for traditional cinema-lens operation. PL mount, passing Cooke /i and ZEISS eXtended Data.

Character profile

How this lens renders.

8× servo zoom. Full frame with the extender in.

Five axes plotting how this set behaves wide-open vs a neutral modern reference. Larger area = more pronounced trait.

Talking points

Why DPs pick this set

  1. 8× from 15 to 120mm, holding T2.95 all the way to 90mm

  2. Built-in 1.5× extender: 22.5 to 180mm, with full-frame coverage

  3. Servo drive for zoom, focus and iris that comes off for cinema-style operation

  4. PL mount passes Cooke /i and ZEISS eXtended Data to the camera

Technical

Full specifications

Focal Range
15–120mm; 22.5–180mm with the 1.5× extender
Aperture
T2.95 at 15–90mm, T3.95 at 120mm. With the extender: T4.4 at 22.5–135mm, T5.9 at 180mm
Zoom Ratio
8×
Coverage
Super 35 at 15–120mm. Full Frame at 22.5–180mm with the built-in 1.5× extender engaged.
Close Focus
0.85m (2.8') from the image sensor
Iris
11 blades
Focus Throw
180°
Front ⌀
114mm
Filter
127mm in the hood; 112mm on the lens body
Dimensions
186.7 × 131.7 × 286.9mm (PL)
Weight
Approx. 3.4kg
Servo
Removable drive unit for zoom, focus and iris, run from standard lens controllers
Lens Data
Cooke /i and ZEISS eXtended Data
Mount
PL
